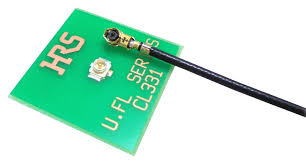

Connector Type: U.FL surface-mount receptacle
Designed to mate with U.FL plug-type coaxial cables, providing a snap-on connection for ease of use in production and testing.

Characteristic Impedance: 50 Ω
Optimized for high-frequency signal integrity in RF circuits, supporting performance up to approximately 6 GHz.

Ultra-Compact Size:
Small footprint (~2 mm × 2 mm) allows use in highly miniaturized PCBs like those found in IoT devices, GPS modules, and wireless systems.

Low Profile:
Mated height is approximately 1.9 mm, making it ideal for applications where vertical space is limited.

Durability:
Rated for around 30 mating cycles—suitable for permanent or semi-permanent installations where repeated disconnection is not frequent.

Material & Finish:

• Center contact: Brass with gold plating for reliable conductivity

• Outer shell: Phosphor bronze with silver plating for effective shielding

• Housing: High-performance thermoplastic (LCP), heat-resistant and stable during reflow soldering

Mounting Style:
Surface-mount (SMD) compatible with reflow soldering processes, supplied in tape and reel packaging for automated PCB assembly.

Operating Temperature Range:
–40 °C to +90 °C, ensuring consistent performance in most commercial and light industrial environments.
